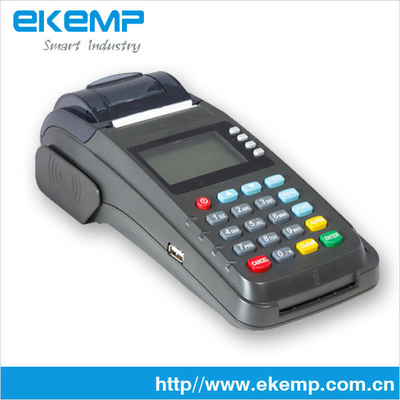

Mobile EFT POS Terminal/Smart/Bank Card Reader POS/Prepaid Card POS Device(N7110)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | mobile eft pos terminal,prepaid card pos device,smart/bank card reader pos |
||
|---|---|---|---|
Mobile EFT POS Terminal/Smart/Bank Card Reader POS/Prepaid Card POS Device(N7110)
Features:
1.Linux OS, which supports multiple tssks and multiple applications
2. Elegant and slim design,convenient swiping card vertically
3. Leading ARM processor (400MHZ), outstanding performance in mass data and EMV transactions
4. 160MB memory,supports loading multiple applications
5. Multiple choices of integrated communication modules,such as PSTN, TCP/IP and Wi-Fi
6. Supports complete version SSL(Security Socket Layer)
7. USB HOST
8. Up to 3 RS232(optional)
9. 5V@500mA output
10. Supports remote download via NewTMS and FTP
11. High speed thermal printer, up to 25 lines/sec, easy load style,adjustable print gray, supports printing dual-layer paper
12. EMV2000(Level 1&2) PBOC2.0, RoHS approved
Detail:
Processor | 32-bit CPU,ARM9,400MHZ |
Memory | 128MB FLASH,32MB SDRAM |
Display | 128×64pixel LCD,white LED backlight and specific icon |
Keypad | 4 ATM keys,10alphanumeric keys,9 function keys,1 ON/OFF key |
Peripheral Port | 2 RS-232 (up to 3), 5V @ 500mA DC output 1 RJ11 for line, 1 RJ11 for phone 1 RJ45 fro TCP/IP |
USB | 1 USB Host |
Power Supply | Input: 100~240VAC, 50Hz; Output: 12VDC, 3A |
WorkingEnvironment | Temperature: 0°C~50°C(32°F~122°F); Humidity:10%~90% (non-condense) |
Storage Environment | Temperature: -20°C~60°C(-4°F~140°F); Humidity:5%~95% (non-condense) |
Dimensions | 299mm×98mm×70mm(L×W×H) |
Weight | 600g |
Certification | EMV4.2 Level 1&2, PBOC2.0 |
Magnetic Card | Compliant with ISO7811, ISO7812; Track 1/2/3, bi-directional swipe; |
IC Card Reader | 1 user card (EMN4.2), supports SLE4442/SLE4428 memory card |
PSAM Slot | 2/3 SAM slots, compliant with ISO7816; Supports PPS protocol |
Contact less Card Reader (Optional) | Support Mifare classic, Mifare Ultralight, Mifare DESFire, IOS14443 A & B, SONY FeliCa |
OS | Linux |
Language | Supports Chinese (GB2312/GB18030), English, Frech, German,Latin,Russian, Arabic, Vietnam etc; support Unicode; |
Remote Download | Supports New TMS or FTP remote download |
Internal MODEM | Synchronous: V.22bis, N.29, supports 1200/2400/9600bps Asynchronous: N.34, up to 33.6Kbps Supports PPP dial, support full SSLv2/3 TLSv1 (Options) |
Internal LAN | 10Base-T/100Base-T,support full SSLv2/3 TLSv1 (Options) |
Internal Wi-Fi | 802.11b/g, supports full SSLv2/3 TLSv1 (Options) |
Printer | High speed thermal printer Easy-load style Speed: up to 25 line/sec (75mm/sec) Paper width: 58 +0/-1mm Paper roll outside diameter: 50mm Adjustable print gray, support dual-layer paper |
Applications:
1)Money Transfer,E-Wallet,E-voucher,E-topup,Instant Mobile Remittance.
2)Bill Payment in Electricity ,Gas, Insurance,Charity.
3) Prepaid Recharge for Gift card and Loyalty card.
4) Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie.
5) Hotel/supermarket/retail/Kiosk/restaurant/malls/convenience store management.
6) Lottery.
7)Other applications
