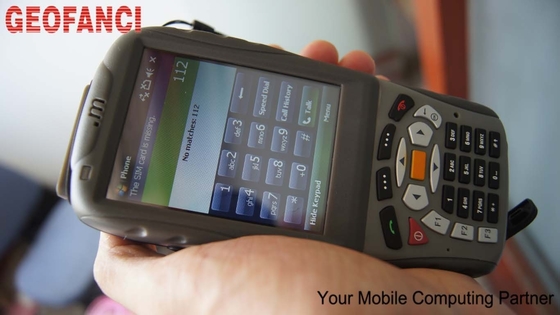

3G 3.2inch LF/HF RFID Reader Industrial PDA Windows Mobile Handheld PDA Devices

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  3G 3.2inch LF/HF RFID Reader Industrial PDA Windows Mobile Handheld PDA Devices Get Best Price

Product Details:
Place of Origin: China
Brand Name: SPEEDATA
Certification: IP54 , GB/T 1822.---2000
Model Number: MT02W-S
1D/2D Barcode scanner: optional
HF RFID Reader: 13.56MHZ RFID Reader
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $260USD
Packaging Details: carton box
Delivery Time: 10 working days after got the payment
Payment Terms: TT in advance / Paypal / Western Union
Supply Ability: 1000 sets per month
Detailed Product Description
High Light:

mobile rfid readers


windows mobile 6 barcode scanner

3G 3.2inch LF/HF RFID Reader Industrial PDA Windows Mobile Handheld PDA Devices


Description :

     Mainly use Marvell PXA310(624MHZ) CPU , Connecting the Internet by GPRS ,EDGE ,or 3g WCDMA /EVDO ;
     Support Windows mobile / Windows CE system , and at the same time , some products can provide Android system ;
     On the basis of BASE plate added three optional function module :
     1.1D/2D barcode scanner function module ;
     2.LF/HF RFID Reader function module  ;
     3.DGPS /Printer/ZIGBEE function module



Core board
WM6.1/6.5 OS YES(Module)

Marvell PXA310(624MHz)+qualcomm (GSM Quad-band 850/900/1800/1900MHz, GPRS, EDGE/WCDMA

850/1900/2100MHz HSDPA 3.6Mbps)

WM6.1/6.5 OS option2(Module) Marvell PXA310(624MHz)+qualcomm EVDO (800MHz,
WM6.1/6.5/CE OS option3(Module) Marvell PXA300(No communication module.)
Memory Flash ROM 256MB
Extend Slot Micro SD 16G (SDHC)

3.2inch TFT LCD display  (320 x 240) 65k color/touch
Transflective screen

Form Factor Bar type classical Pocket PC,Industrial appearance
GPS Solution Ublox The 5th Generation
Wire Transmission USB 2.0 Full Speed, charging/sync

Bluetooth SIG version 2.0 compliant; Supported
profiles: headset, hands-free,

 object push, serial port, dial-up network

WiFi WiFi (802.11 b/g)
Laser scanner

symbol 1D (SE955)/Can be replaced by Honeywell 2D
 reader head/
 Can be replaced by NEWLAND:EM1300

C-MOS imager
External Interface RS232;SPI;print
Protection class IP54
Drop resistance level  1.8m
Audio Handfree Yes
StereoBlueTooth earphone Yes
Ringtone support 64-chord MIDI, MP3, WMA, WAV
Playback support MIDI, MP3, WMA, WAV, AMR
Speaker support handfree
Network Led red/green/yellow
Keypad Front  Number key, Function key
Side Volume up, Volume down,camera
Interface Mini-USB connector USB2.0 connection and power charging
SIM card slot Yes
Audio Jack NO
Battery Type rechargeable Li-ion battery 3000mAh
Standby Time 500hours
Calls Time Up to 6hours
Charging Time 4 hours
Physical Characteristics Dimension 149*72*28mm
Weight TBC
Key Software
Operating System Windows Mobile 6.1/6.5 professional / WINCE6.0
Default language English
Package Contents
Standard Packaging:   Main Unit*1pc,  Charger*1pc,  USB Cable*1pc, battery*1pc


Application :


Mainly used in telecommunications, GPS, taking pictures , Barcode scanner , RFID Reader and so on ;


Competitive Advantage :

1. We have our own manufacture factory in Beijing ;
2. Scientific management, advanced production equipment;
3. Own r&d team and technical personnel;
4. Excellent after-sales service and technical support;
