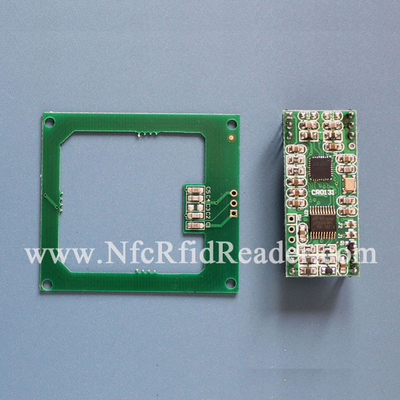

TypeA Mifare UART interface HF RFID Reader writer 13.56 MHz for NFC mobile tag

Large Image : TypeA Mifare UART interface HF RFID Reader writer 13.56 MHz for NFC mobile tag Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	IRONBOUND
Model Number:	CR0131E CR0131E-L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Price:	US $10 - 12 / Piece
Packaging Details:	21.59.56CM 66pcs one Box
Delivery Time:	3~5
Payment Terms:	L/C,T/T,WesternUnion, Paypal
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

Detailed Product Description

High Light:

RFID smart card reader

RFID card reader and writer

CR0131E is a 13.56 MHz Read / Write Module , it supports ISO15693 Cards type like I.code SLI , TI2k , SRF55V01P , LRI2k .. & ISO14443 TYPE A card like mifare 1k , mifare 4k , ultralight , sle66r01p , FM1108 ...

Application scopes

Network access control
Micro-payment
NFC mobile tag
Public transportation terminals
Automatic fare collection
Physical access control
Customer loyalty
Time and attendance
Contactless public phones
Vending machines
Access controls
Admission control
Master and user authentication control
Time and attendance
Pre-payment
Ticketing

CR0131E Description

NAME	CR0131E 13.56M 14443A & ISO15693 Reader Module
Weight	12g
Dimensions	42*18(mm)
Temperature	-40 － +85C
Interface	COMS UART or IIC
Read Range	up to 10cm
Frequency	13.56MHz
SUPPORT	ISO14443A & ISO15693
	I.CODE SLI , Tag IT , SRF55V01P , SRF55V02P , SRF55V10P LRI2K Mifare 1k ,mifare 4k ,ultralight , SLE66R01P , FM1108 .SLE66R35
Power Requirement	DC4.5 - 5.5V ,70ma - 100ma DC3.0~3.6V 50ma~70Ma
MCU	Core: ARM® 32-bit Cortex™-M0 CPU


	CR0131A	CR0131B	CR0131D	CR0131E
ISO14443A	√			√
ISO14443B		√
ISO15693			√	√

CR0131 Serials Part Number Description:

Model	Description	Interface & Others
CR0131A	Mifare s50/s70,ultralight,FM1108,TYPE A,Ntag,SLE66R01P,NFC typeA tags	UART DC 4.5~5.5V
CR0131D	I.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI 2k ,ISO15693 STD	UART DC 4.5~5.5V
CR0131A-L	Mifare s50/s70,ultralight,FM1108,TYPE A,Ntag,SLE66R01P,NFC typeA tags	UART DC 2.6~3.6V
CR0131D-L	I.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI 2k,ISO15693 STD	UART DC 2.6~3.6V
CR0131E	ISO14443 TypeA + ISO15693	UART DC 4.5~5.5V
CR0131E-L	ISO14443 TypeA + ISO15693	UART DC 2.6~3.6V

Service:
1. High quality
2. Competitive price
3. 24 Hours Quickly Feedback
4. Free SDK
5. ODM/OEM Customized Design

Similar product Part number reference

Model	Description	IntterFace
CR0301A	Mifare TypeA reader module mifare1k,4k,ultralight,Ntag,Sle66R01P	UART & IIC 2.6~3.6V
CR028A	Mifare TypeA reader module mifare1k,4k,ultralight,Ntag,Sle66R01P	UART OR SPI 2.6~3.6V
CR0381A	Mifare TypeA reader module mifare1k,4k,ultralight,Ntag,Sle66R01P	UART
CR0381D	I.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI 2k,ISO15693 STD	UART DC 5V OR DC 2.6~3.6V
CR8021A	Mifare TypeA reader module mifare1k,4k,ultralight,Ntag,Sle66R01P	RS232 or UART
CR8021D	I.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI 2k,ISO15693 STD	RS232 OR UART DC 3V OR 5V
CR508DU-K	15693 UID Hex output	USB emulation Keyboard
R508AU-K	TYPE A ,mifare UID or Block Data output	USB Emulation Keyboard
CR508BU-K	TYPE B UID Hex output	USB emulation Keyboard
CR6403	TYPEA(Mifare Plus,Ultralight C) + TYPEB+ ISO15693 + Smart Card	UART RS232 USB IIC
CR510	TYPEA(Mifare Plus,Ultralight C) + TYPEB+ ISO15693 + Smart Card	USB RS232
