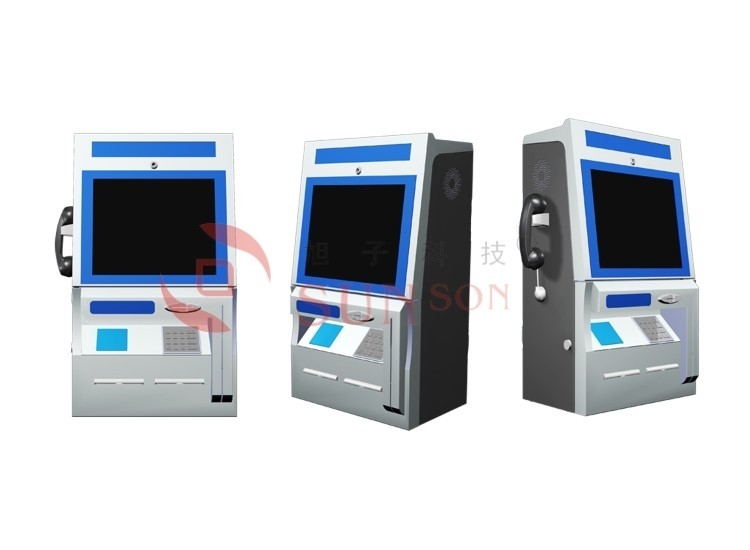

Payment Banking Financial Wall Mounted Kiosk IP phone Optional Credit Card

Large Image : Payment Banking Financial Wall Mounted Kiosk IP phone Optional Credit Card Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Sunson or ODM/OEM
Certification:	CE,FCC,ROHS, EMV L1,PCI3.0,ISO9001:2008
Model Number:	SK652A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable up to the order quantity
Packaging Details:	Film Wrap, Foam, Seaworthy Polywood Case
Delivery Time:	25-35 days upon payment
Payment Terms:	T/T or Western Union
Supply Ability:	Max 2000 units per month

Contact Now

Detailed Product Description

Customized Applications::	Floor Stand Bill Payment Kiosk With QR Barcode Reader	Usage Environment::	Indoor&Semi Outdoor
Basic Configurations::	PC,10.1-65inch Touchmonitor, Free Standing Enclosure	Optional Configurations::	Speaker,metal Keyboard,card Reader,receipt Printer,wifi,etc
Basic Applications::	Internet Access,advertisement Display, Receipt Print,etc	Optional Applications::	Card&bill Payment, Card Issue,ticket Print,document Scan,etc
Enclosure Feature::	Durable Steel, Powder Painting Finish, Any Color/logo Options, Custom Design, Easy Maintenance.	Software Support::	Windows(XP/Window7/8)/Linux/Android OS Available, Offer Kiosk Hardware Drivers/SDK For Software Develop.
Casing Material:	Powder-coated SECC
High Light:	Compact Kiosk , Video Game Kiosk

Payment Banking Financial Wall Mounted Kiosk IP phone Optional Credit Card

Specification

Components	Details
PC system	Industrial Board		Seavo/ Gigabyte/Advantech AIMB 562
	CPU		Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM		2GB /4 GB / 8GB
	HDD		500G
	Interface		6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply		HUNTKEY/Great Wall
AUO LCD monitor	Screen Size		17 inch/19inch ( optional from 8inch to 65inch)
	Brightness		300cd/m2
	angle		horizontal 100°above;Vertical 80°above
	Contrast		1000:1
	Backlight tube life		more than 40,000hours
	Max. resolution		1280×1024
Touch screen	Screen Size		17/19 inch Diagonal ( optional from 8inch to 65inch)
	Resolution		4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit/Card Reader	Interface	RS232.
	Card Type	Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
	Power Voltage	DC 24V±5%
	Card Entry method	Magnetic signal, Optoelectronic signal and rear card signal
Contactless card reader	NFC card reader	world’s first NFC reader compliant with the CCID specification.
Encrypted Pinpad	Keylift~span	2,000,000 cycles
	Key force	2~3N
	Key trip	>2.5mm
	Protection level	ip65
Receipt thermal printer	Autocutter	included
	Technology	Thermal printing
	Paper width	80mm/60mm optional
	Printing speed	150mm/s
	Data buffer	4KB
	Interface	RS232 ,USB
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
KIOSK Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing	Security Packing method with bubble foam and wooden case

Typical Applications

Airtime top-up
Prepaid card sales (e.g. Wi-Fi account cards, game cards and VoIP calling cards)
Bill payment (e.g. water, electricity and gas, etc.)
E-ticket (e.g. barbershop tickets, meal tickets and movie tickets)
Issuance and top-up of membership cards
Other extended services

Main Function
