contactless smart NFC RFID Reader , 13.56MHZ TYPE A Desktop Reader
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | NFC card reader,mifare RFID reader |
||
|---|---|---|---|

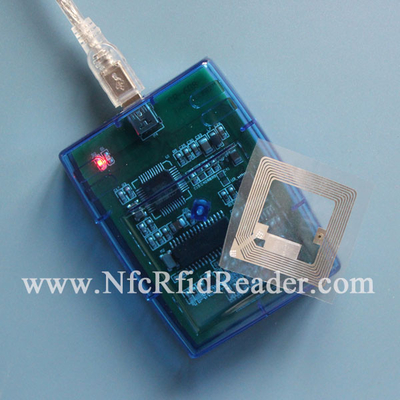

contactless smart NFC RFID Reader , 13.56M TYPE A Desktop Readers
The CR608A is a Desk top contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology, it supports Mifare and ISO 14443 A Cards type like Mifare 1K , Mifare 4K , Mifare Utralight SLE66R01P FM1108
Application scopes
- e-Government
- Banking & Payment
- Access Control
- Network Security
- e-Purse & Loyalty
- Transportation
- kiosk
CR608A TYPE A Reader Description
| NAME | CR608 ISO14443A Reader |
| Weight | 120 g |
| Dimensions |
78.5*60 *19(mm) |
| Temperature | -20 － +85C |
| Interface | USB Virtual Rs232 / RS232 |
| Read Range | up to 10cm |
| Frequency | 13.56MHz |
| SUPPORT | ISO14443A |
| Mifare 1K , Mifare 4K , Mifare Utralight , Mifare DesFire , Mifare Plus,Ultralight C , SLE66R35 contactless CPU card | |
| System | Windows XP,NT ,WIN7,WIN8 ,CS BS, Liunx |
| SDK | W32 Win64 SDK |
| DEMO | VC.BC.VB.PB.DEPHI ,VB net, C# Sample source code |
CR608 Serial Product Description
| NAME | CR608 series Reader ISO14443A / B,ISO15693 |
| Weight | 240g |
| Dimensions | 110*80 *26 (mm) |
| Temperature | -20 － +85C |
| Interface | USB Virtual Rs232 / RS232 |
| Read Range | up to 10cm |
| Frequency | 13.56MHz |
| SUPPORT | ISO14443A , ISO14443B , ISO15693 |
| Mifare 1K , Mifare 4K , Mifare Utralight , Mifare DesFire , Mifare Plus,Ultralight C , SLE66R35 , SR176 , SRIX4K , AT88RF020 , SLE66CL160S , SAMSUNG K8 , SAMSUNG V8 , I.CODE SLI , Tag IT , SRF55V01P , SRF55V02P , SRF55V10P ISO14443B contactless CPU card | |
| System | Windows XP,NT ,WIN7,WIN8 ,CS BS, Liunx |
| SDK | W32 Win64 SDK |
| DEMO | VC.BC.VB.PB.DEPHI ,VB net, C# Sample source code |
CR608 Serials Part Number Description:
| Model | Description | InterFace | ||||
| CR608A | Mifare s50/s70,ultralight,FM1108,TYPE A | RS232 | ||||
| CR608AU | Mifare s50/s70,ultralight,FM1108,TYPE A | USB virtual RS232 | ||||
| CR608B | Mode A + AT88rf020,SR176,SR4k,TYPE B cpu | RS232 | ||||
| CR608BU | Mode A + AT88rf020,SR176,SR4k,TYPE B cpu | USB Vitual RS232 | ||||
| CR608D | ISO15693,I.codesli, Ti2k,SRF55V01,SRF55V02,SRF55V10 | RS232 | ||||
| CR608DU | ISO15693,I.codesli, Ti2k,SRF55V01,SRF55V02,SRF55V10 | USB virtual RS232 | ||||
| CR608F | Mode A+Mode B+Mode D | RS232 | ||||
| CR608FU | Mode A+Mode B+Mode D | USB virtual RS232 | ||||
| CR608AU-Desfire | MifareS50,S70,ultraLight,Desfire EV1(3DES) | USB virtral RS232 | ||||
| CR6403 CR510 | TYPEA(Mifare Plus,Ultralight C) + TYPEB+ ISO15693 + Smart Card |
Service:
1. High quality
2. Competitive price
3. 24 Hours Quickly Feedback
4. Free SDK
5. ODM/OEM Customized Design
Similar Product List for reference
| Model | Description | IntterFace | |
| CR508AU/CR608-02AU01 | 4BYTE UID 8HEX outPut | USB Emulation Keyboard | |
| CR508AU/CR608-02AU | USB emulation Keyboard | ||
| CR508AU/CR608-02AU03 | 7BYTE UID 14HEX outPut | Ultralight,desfire,ultraligh c | |
| CR508AU/CR608-02AU03 | 4 Or 7BYTE UID , 8 Or 14HEX outPut | ||
| CR508DU 01 | 8UID 16 Hex output | Eg: i.code sent out E0 04 …. | |
| CR508DU 02 | 8UID 16 Hex output | Eg: i.code sent out …04 E0 | |
| CR508DU 03 | PicoPass2k UID Hex output |
