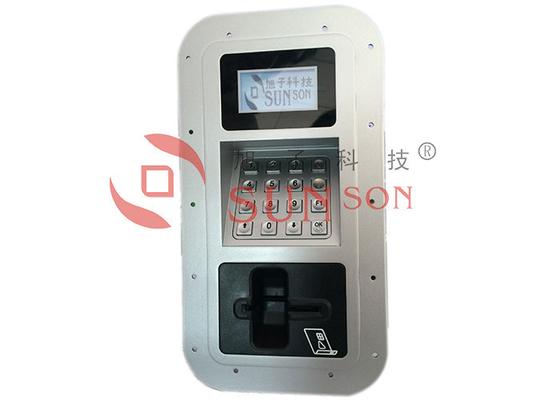

UPT Kiosk Parts PCI EMV Contactless And Magnetic Card Reader PCI EPP For Kiosk
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Main Modules: | Contactless Card Reader, PCI Approved PINPAD, IC/ MSC Reader | Optional Modules: | LED Display Screen |
|---|---|---|---|
| Data Cable: | RJ45-RS232 | Power Supply: | 12V |
| Contactless Card Reader: | Up To 6cm Distance | Card Support: | ISO-7811, ISO-7816, ISO-14443 |
| Measurement: | 332*152mm | Protection Level: | IP65 PCI Encrypted Metal Keypad |
| High Light: | Kiosk Enclosures,Unattended Payment Terminal |
||
UPT Kiosk Parts PCI EMV Contactless And Magnetic Card Reader PCI EPP For Kiosk
* Unattended payment terminal, integrated the card reader, EPP and optional display module
* Industrial level design
* Water-proof, dust-proof and anti-vandal
* Legends on the keys can be customized
* EMV L1 certificate card reader;
* PCI approved PINPAD
* guarantee the safety and convenience of transaction.
Size: 332*152mm
Interface: Data cable(RJ45-RS232)
Specifications
Mechanical Performance | |
Main Modules | PCI 2.0 standard support DES/triDes, RSA algorithms; Manual card reader, EMV L1 approved, support IC card, and Magnetic Stripe Card; Contactless card reader: up to 6cm distance |
Standard | DES/3DES and RSA algorithm |
Follow standard | ANSI X3.92, ANSI X9.52, ANSI X9.24 |
PIN operation | ANSI X9.8,ISO9564.0,ISO9564.1,ISO9564.3,IBM3624 |
MACoperation | ANSI X9.9,ANSI X9.19 |
| Encrypting speed | <0.1S(8bytes of DES) |
Card support | ISO-7811magnetic stripe card; ISO-7816 contact IC card; ISO-14443 standard RF card |
Protection level | IP65 static / IP54 dynamic water-proof, dust free, anti-vandal, contaminate-proof, prevent from tamper drilling, penetration, dismatling, audio monitoring, replacement |
Electrical Performance | |
Interface | RJ45-RS232 |
Application Fields
Factory OEM Unattended Payment Terminal Kiosk parts New 2015 is applied in installation on Fuel Dispenser, Vending Machine, Ticket Vending Terminals, Self-service Terminals related to funds transfer, etc.
Company Information
Established in year 2003, Shenzhen Sunson Tech Co. Ltd. is a high-tech company professionally engaged in developing, manufacturing and marketing special peripherals (input devices) of ATM, kiosk, self-service terminals, Ultrasound etc. Main series products include waterproof metal keyboard, metal keypad, trackballs, self-service terminals such as ATM, Kisok, etc.
Why choose Sunson?
Do you have complete solutions in other Languages?
Yes, our R&D team develops and factory offers many popular languages such as English, Russian, Spanish, French, German, Arabic…without any additional cost.
What’s your warranty?
1~2 years warranty from the date of delivery, A lifetime technical support.
More product specifications of New Unattended Payment Terminal PIN Pad card reader, please call:
Sales—Scarlett
Mob./ WhatsApp/ Viber: +86 138 2317 3126
Skype: scarlett-czl
sales03 (at) szsunson.com
Thanks so much for your inquiry. We will reply within 1 day.
Welcome to visit our factory anytime.
