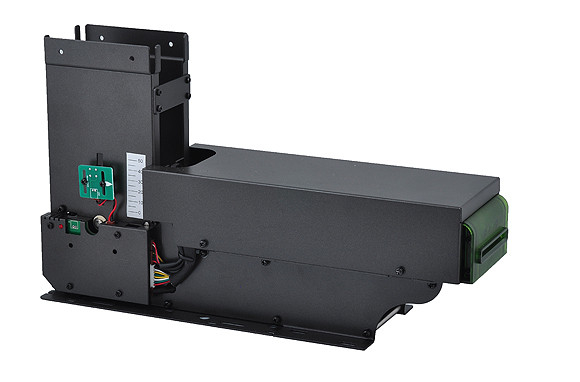

Hybrid Card Issuing Machine
ACT-F6 series card issuing machine is a 3-in-1 card issuing and reading/writing device, which supports ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card R. Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical sector, transportation sector and that for account opening in banks.
* Information kisok
* Transportation system
* Telecommunication system
* Paper ticket issuing
* Gas station
* Toll gate
* Parking system
*Power Supply: DC24V ± 5%, 3A
*Quiescent Current: < 200mA
*Communication Method: RS232
*Service Life(Issuing life): ≥ 1, 000, 000 times
*Service Life(Magnetic head): ≥ 500, 000 times
*Service LifeI(C contact): ≥ 500, 000 times
*Card Stacker Capacity: 150 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)
*Capture Box Capacity: 25 pcs (0.76mm standard card)
(Collection channels can be customized to collect unlimited cards.)
*Net Weight: Approx. 2.8KG (excluding accessories and package)
*C/D Dimension: 326L x 103W x 220H mm (without shutter)
347L x 100W x 200H mm (with shutter)
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -20°C to 70°C, 0 to 90% RH without condensation
*Cards Supported:86L x 55W mm
(0.2~1.2mm thickness; factory standard: 0.8mm)
*Magnetic Recording Capacity: Track 1 (IATA): Max. of 79 characters (6 bits + 1 parity)
Track 2 (ABA): Max. of 40 characters (4 bits + 1 parity)
Track 3 (MINTS): Max. of 107 characters (4 bits + 1 parity)
*Magnetic Coercivity:24k~320k A/m (300~4000 Oe)+/-10%
*Mifare Type A Operating Frequency:13.56 MHz
*RF Communication Speed:105k bps
*Warranty: One year (calculating from the receiving date or AWB signing date)
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Compact structure design: effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.
