Product Details:
Payment & Shipping Terms:
|
High Light: | automatic systems turnstiles,turnstile gate systems |
---|
1,Security turnstile gate
,2, IC/ID/barcode control
3,RS485 Standard Interface
4,Fully Automatic
5,304 stainless steel

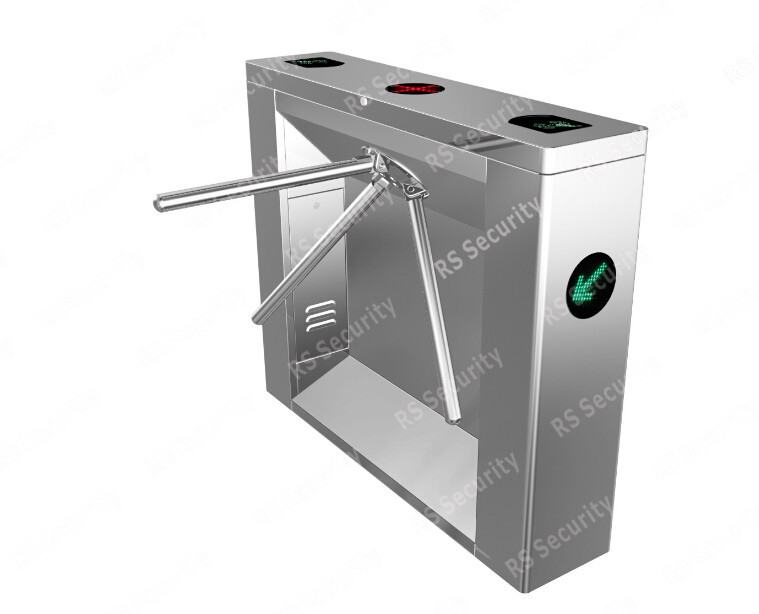

Product Name: Waist Height Turnstile
Model: RS718
1.Functions& Features
(1) Running stablely without noise and mechanical impact
(2) The passing person number of the persons can be set
(3) Several ways of working molds for your demand chosen
(4) Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not
(7) The standard electrical interface connected with various kinds of reader and writer equipment
(8)All the functions realized in one integration machine and controlled and managed by the computer in the far distance
(9)The number of the persons passed by can be counted automatically which can also be displayed in LED
(10) Beam can be lifted and fall when power is cut-off
(11) The function with or without card-reading memory cab be set according to your demand.
(12) Self-check and alarm for convenienting to operate
Particular Functions: DC Brushless Motor, no maintenance all the of life, With the torque
motor to drive and reset, NO Attrition, Low–noise, Intelligence.
2.Technical Parameters
1 | Power | AC220C±10V, 50HZ |
2 | Operating Temperature | -45°C--60°C |
3 | Relative Humidity | ≤95%, No Condensation |
4 | Access Width | ≤550mm |
5 | Passing Speed | 30 persons/min(IC Card) |
6 | Motor | DC Brushless Motor, 0.5NM/24V(Fully Automatic) |
7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
8 | Communication Connection | RS485 Communication Module Standard. |
9 | Material | SUS304 |
10 | Protection grade | IP 54 |
11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
