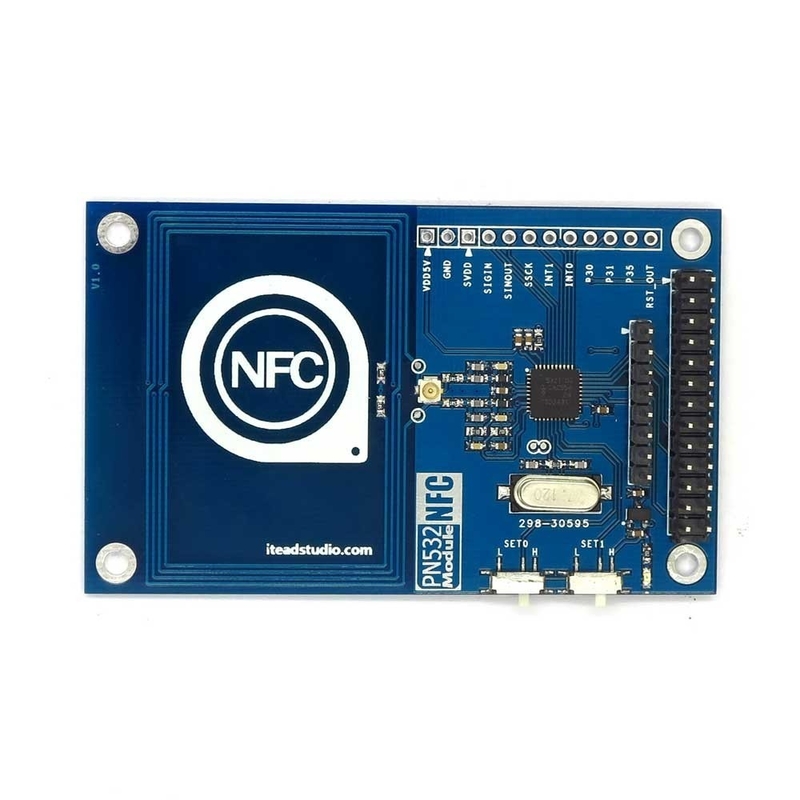

RFID Card Readers Module for Arduino Development Board 13.56MHz 3.3V
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Showed In Picture | Place Of Origin: | Guangdong China (Mainland) |
|---|---|---|---|
| Brand Name: | OEM | Item Brand: | 100% New |
| Chip: | NXP PN532 | Working Voltage: | 3.3V |
| Factory Price: | Yes | Product: | Original |
| High Light: | arduino bluetooth module,arduino module |
||
RFID Card Readers Module for Arduino Development Board 13.56MHz 3.3V
Specification:
PN532 NFC Module,adopted PN532 chip,13.56MHz Near Field Communication and onBoard antenna.Compatible with SPI, IIC, UART interface to communicate.
Longest effective communication distance is 5 cm
Supports SPI, IIC, UART interface switching.
For 13.56M non-contact communication
Compatible with ISO14443 TYPE A and B standards
Specification:
Chip: NXP PN532
Working voltage:3.3V
Power supply voltage:3.3V~5.5V
Maximum supply current:150mA
Operating Current (Standby Mode): 100mA
Operating current (write mode): 120mA
Operating current (read mode): 120mA
Pointer:PWR
Interface: Raspberry Pi's 20 pins interface standard SPI interface
Competitive Advantage:
1.Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment
Photos:
