Desktop Epoxy Adhesive Dispensing Robot Systems With Ce Listed
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | VS-200 New Design Low Cost Desktop CE Listed Dispensing Robot | Application: | Glue/epoxy/resin |
|---|---|---|---|
| Weight: | 45kg | Dispensing Size: | 200*200*100mm |
| Type: | VS-200 | Motor System: | High Precision Motor |
| Standard: | ROHS/SGS | Display: | LCD Teach Box |
| High Light: | glue dispensing equipment,epoxy dispensing machine |
||

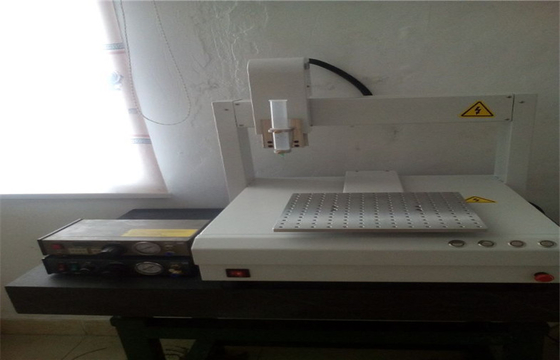

VS-200 New Design Low Cost Desktop CE Listed Dispensing Robot
Specifications:
1. Proper for a variety of common sealants
2. 99 programs
3. CE listed
| model | VS-200 |
| Working Range X/Y/Z (mm): | 200/200/50 |
| Load Y-AXIS / Z-AXIS: | 5 / 3 kgs |
| X&Y / Z ( mm/sec ): | 0.1-500/250 |
| Resolution: | 0.001 mm/Axis |
| Repetitive Positioning Accuracy: | 0.01 mm/ Axis |
| Program Capacity: | At least 100 groups, each group 4000 points |
| Data Storage Type: | CF Card |
| Program Display: | Teach Pendant LCD |
| Motor System: | Micro-step precision motor |
| Control Method: | PTP & CP |
| Interpolation Function: | 3 axis ( 3D stereo space arbitrary paths can) |
| Programming Method: | Teaching box / PC |
| I/O Signals Port: | 8 / 8 Outputs Inputs |
| External Control Interface: | RS232 |
| Power Supply: | AC110 220V 300W |
| Working Temperature: | 10 - 40 C |
| Working Relative Humidity: | 20 - 90% no condensation |
| Dimensions (WxDxH mm): | 380X370X500 |
| Robot Weight (kg): | 23kgs |
Application
Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.
Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Glue type
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue,
red glue, silver paste, thermal paste, solder paste, transparent paint,
Feature:
Teach Pendant and (optional) PC programming
Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
Can set the glue amount, speed and time etc. Stable glue flow and no leaking.
Four barrels work at the same time to improve efficiency.
Equipped with software that has the area display, translation rotating operation functions.
