Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | self service payment kiosk,cash payment kiosk |
||
|---|---|---|---|

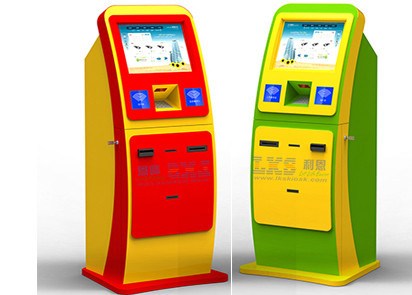

Capacitive Touch Screen Vending Bill Payment Kiosk With Magnetic Card Reader
Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader:
Main functions :
- Type:Bill Payment Kiosk, self-service kiosk, touchscreen kiosk
- Application: Indoor
- Supported OS: windows 7 or windows 8 or Linux
- optional size of screen: 17inch, 19inch or upon customers’ request
- Touch Screen: IR/SAW/Capacitive
- Display:TFT,LCD, AUO or others
- Kiosk Color: upon the customer’s request
- Material Feature:Anti-dust, Anti-vandal
- Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others
- Logo:Upon clients
- Parts: Cash acceptor/Coin acceptor/Card reader/receipter printer….
- Warranty: 1 year
- Power supply: 110-120V, 220V-240V or optional
Description:
- LKS is a professional Bill Payment Kiosk manufacturers and payment kiosk supplier in China. It provides the bill payment kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.
- LKS bill payment kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.
- LKS bill payment kiosk is manufactured by 1.5mm-3mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.
- LKS main bill payment kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.
Applications:
- Banks
- Hotel
- Hospital
- Theatre
- Railway Station
- Metro Station
- Parking Lot
- Shopping Mall
Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader are including touch screen self payment kiosk, touch screen bill payment kiosk, self service payment kiosk, payment terminal atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.
Standard hardware components List of Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader is as following:
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Keylift~span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 ,USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Other Optional hardware components List of Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader is as following:
- Cash dispenser
- Coin dispenser
- Advertising screen
- Barcode scanner
- Passport reader
- Web camera
- A4 Laser printer
- Card Dispenser
Main designs of LKS Touch Screen Vending Kiosk for Bill Payment Kiosk Use With Magnetic Card Reader:
